Best Budget Oscilloscope

Ever found yourself lost in the sea of oscilloscopes, unsure of which one to pick for your next big project? Whether you’re a seasoned engineer, a hobbyist, or just someone who’s curious about electronics, choosing the right oscilloscope can feel like navigating a jungle. Luckily, you’re in the right place to get a quick, friendly rundown of some notable models – each with its own bells and whistles. Let’s take a look at a mix of high-performance giants and compact wonders.

Oscilloscopes have been a staple in the toolbox of engineers and electronics enthusiasts for decades. They’ve come a long way from the bulky, old-school models to the sleek, multifunctional versions available today. An oscilloscope’s primary job is to display varying signal voltages, but many modern versions have expanded functionalities like built-in function generators and digital storage. Owning an oscilloscope can be a game-changer, providing you with critical insights into the behavior of electrical signals, allowing for troubleshooting, designing, and validating various electronics systems.

In this article, we’ll take a closer look at several popular options. From the high-performance Rigol MSO5104 with its UltraVision II technology to the budget-friendly and compact NooElec JYETech DSOShell, there’s something for everyone. We’ll also explore the features of the Upgrade Mini Handheld Digital Oscilloscope, the highly capable Rigol DS1202Z-E, and the versatile FNIRSI 1014D. By the end, you should have a clearer idea of which oscilloscope might be your perfect match. Buckle up; it’s going to be a fun ride!

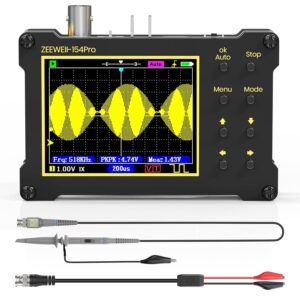

Upgraded Mini Digital Oscilloscope with Function Generator, 40MSa/s, 18MHz, 2.4″ LCD, and Probes

When diving into the world of electronics, having a reliable oscilloscope is crucial. The Upgrade Mini Handheld Digital Oscilloscope offers a portable solution perfect for a variety of applications. Whether you’re debugging single-chip setups, working on car maintenance, testing home appliances, participating in electronic competitions, or even tinkering with DIY projects, this compact oscilloscope is designed to meet your needs. It’s particularly useful for dealing with retro PCs, thanks to its 18MHz bandwidth and 40MSa/s sampling rate.

There are several reasons why this oscilloscope stands out:

1. Portability: Its small and compact design makes it easy to carry around.
2. Built-in Function Generator: The ability to output different waveforms makes it versatile.
3. User-friendly: Equipped with one-key AUTO adjustment, it simplifies the measuring process.
4. Wide Application Range: From car maintenance to DIY debugging, it covers a broad spectrum of uses.
5. High Compatibility: It can handle a range of voltages and offers built-in high voltage protection.
6. Battery Life: The efficient battery supports continuous usage for up to 6 hours.

The Upgrade Mini Handheld Digital Oscilloscope is designed to bring professional-grade capabilities to a budget-friendly package. Here’s a rundown of its key features:

• Sampling Rate and Bandwidth: With a real-time sampling rate of 40MSa/s and 18MHz bandwidth, it ensures accurate data capture and display.
• Built-in Signal Generator: The oscilloscope can generate various waveforms like sine, square, and triangle waves with a 3V amplitude, catering to a variety of testing needs.
• Full Trigger Modes: Including auto, normal, and single modes, making it easier to capture the exact waveform you’re interested in.
• Versatile Applications: Suitable for debugging single-chips, car maintenance, home appliance testing, and more.
• 14 Measurement Types: Frequency, Peak-to-Peak, Duty Cycle, Amplitude, RMS, and others, offering comprehensive analysis capabilities.
• High Voltage Protection: Can withstand up to ±400V AC/DC voltage signals, ensuring safe operation.
• Battery Power: 1000mAh battery that allows for about 6 hours of use after a full charge.

When it comes to overall quality, the Upgrade Mini Handheld Digital Oscilloscope excels in several areas. The use of ARM and FPGA chip collaboration ensures high-speed signal acquisition and rapid data processing. This makes it highly responsive and capable of handling demanding tasks. The materials used are durable, and the build quality is solid, giving you confidence in its longevity. The 2.4″ LCD screen provides clear visuals, making waveform analysis straightforward.

• Portability: Small and lightweight, easily fits in a backpack or tool kit.
• Built-in Function Generator: Adds incredible value for various electronic testing scenarios.
• User-Friendly Interface: Simplified controls including one-key AUTO adjustment streamline the measurement process.
• High Compatibility: Suitable for various applications, including modern and retro electronics.
• Comprehensive Measurements: Fourteen different measurement options ensure you get all the data you need.
• High Voltage Protection: Ensures safety even with high voltage signals.
• Decent Battery Life: Up to 6 hours of continuous use on a full charge.
• Screen Size: At 2.4 inches, the screen may be a little small for those used to larger displays.
• Sampling Rate Limitation: For more advanced or professional applications requiring higher sampling rates, this might fall short.
• Basic Build: While sturdy, the design is utilitarian and may not appeal to those looking for a more refined aesthetic.

The Upgrade Mini Handheld Digital Oscilloscope offers a robust set of features and impressive functionality for its price point. Whether you’re a hobbyist or a professional, this oscilloscope promises to be a valuable addition to your toolkit, making it one of the best budget-friendly options available.

Rigol MSO5104 100 MHz Mixed Signal Oscilloscope with 4 Channels

When it comes to versatility in a budget oscilloscope, the Rigol MSO5104 100 MHz Mixed Signal Oscilloscope takes center stage. This particular model is designed with engineers, hobbyists, and technicians in mind. The tool aims to cater to a wide range of applications, from troubleshooting circuits to high-speed signal analysis. Whether you’re involved in embedded systems, communications, or automotive electronics, this oscilloscope is fortified with features that can meet your diagnostic and analysis needs.

You will appreciate the Rigol MSO5104 for a myriad of reasons. Firstly, its ultra-high-speed UltraVision II technology provides an astonishing waveform capture rate. We’re talking about over 500,000 waveform captures per second, a feature that’s usually reserved for more expensive models. This makes it ideal for capturing transient or rare issues in your signals. Additionally, the product comes with a highly flexible memory depth of up to 200 Mpts, enabling you to store extensive data for detailed analysis.

The Rigol MSO5104 is more than just a tool; it’s a comprehensive solution aimed at stepping up your debugging and analysis game.

• Analog Bandwidth Options: Available bandwidths include 350 MHz, 200 MHz, 100 MHz, and 70 MHz, making it suitable for various test scenarios. The option to upgrade the bandwidth means that the oscilloscope grows with your needs.
• Channel Flexibility: It comes with 2 or 4 analog channels (upgradable), along with 16 digital channels if you have the necessary LA probe. This mixed-signal capability is incredibly useful for complex signal analysis.
• Real-Time Sample Rate: The oscilloscope offers up to 8 GSa/s sample rate, ensuring high-resolution signal capture.
• UltraVision II Technology: This feature enables an extremely high waveform capture rate, a game-changer for diagnosing fleeting signal irregularities.
• Memory Depth: A substantial 200 Mpts memory depth (optional) allows for long signal recording sessions without missing critical details.

All these features collectively make the Rigol MSO5104 a powerful yet cost-effective instrumentation solution.

In terms of overall quality, you will find that the Rigol MSO5104 stands head and shoulders above many other budget oscilloscopes. The build quality is robust, offering a sturdy frame that can withstand regular use in demanding environments. The display resolution and touchscreen interface are responsive and crisp, making it easier to read and interpret data. Furthermore, Rigol’s software ecosystem is user-friendly, allowing easy integration with other tools and seamless firmware updates.

• High Bandwidth Options: Multiple bandwidth options make it versatile.
• Class-Leading Sample Rate: Up to 8 GSa/s enables precise signal captures.
• UltraVision II Technology: Provides an extremely high waveform capture rate, which is beneficial for capturing transient events.
• Memory Depth: Generous memory depth up to 200 Mpts allows for detailed data analysis.
• Mixed-Signal Capability: With up to 4 analog channels and 16 digital channels, it offers comprehensive debugging.
• Learning Curve: The plethora of features might be overwhelming for beginners.
• Additional Costs: Some features like the digital channels and extended memory depth may require additional purchases or upgrades.
• Size and Weight: It’s not the most portable oscilloscope, which could be a downside for fieldwork.

In the end, the Rigol MSO5104 100 MHz Mixed Signal Oscilloscope is a testament that high performance doesn’t always come with a high price tag. It’s packed with top-tier features, making it an excellent investment for anyone serious about signal analysis and diagnostics.

Rigol DS1202Z-E Digital Oscilloscope, 200MHz, 2 Channels, 1GSa/s, 24Mpts Memory

When diving into the world of oscilloscopes, the Rigol DS1202Z-E Digital Oscilloscope emerges as an exceptional tool for a range of applications. Whether you’re an enthusiast, a student, or a professional, this dual-channel oscilloscope is designed to cater to your measurement and analysis needs. It’s perfect for electronics hobbyists looking to debug circuits, educators aiming to teach waveform analysis, and industry professionals needing precise data acquisition. Whatever your primary use is, this oscilloscope is versatile enough to handle various electronic testing and measurement tasks with ease.

We absolutely love the Rigol DS1202Z-E for its incredible combination of performance and affordability. One standout reason is its high 200 MHz bandwidth and 1 GSa/s sampling rate, making it adept at capturing intricate details in fast signals. The extensive 24 Mpts memory depth ensures that you won’t miss out on small yet crucial signal segments. Another reason this oscilloscope shines is its user-friendly 7-inch WVGA TFT LCD display. This clear, intensity-graded color display allows you to view waveforms with clarity, aiding in quick analysis and interpretation, making it a joy to use even for extended periods.

The Rigol DS1202Z-E Digital Oscilloscope is fundamentally designed for accurate signal depiction and data capture. Some of its key features make it a standout choice for budget-conscious users:

• Analog Channel Bandwidth: Up to 200 MHz, perfect for capturing a wide range of signals.
• Real-Time Sample Rate: A rapid 1 GSa/s for high-resolution waveform capturing.
• Memory Depth: A substantial 24 Mpts ensures you can capture long periods of data without losing detail.
• Waveform Capture Rate: Capable of capturing up to 30,000 wfms/s, allowing you to catch even fleeting anomalies.
• Real-Time Waveform Recording and Playback: Handles up to 60,000 frames, letting you review and analyze signal behaviors over time.
• Advanced Triggering and Decoding: With various trigger and bus decoding functions, the DS1202Z-E makes precise measurements feasible.
• Low Noise Floor: This feature helps in discerning even the smallest of signal variations.
• Versatile Interfaces: Includes USB Host & Device, LAN (LXI), and AUX, offering flexible connectivity options.

These features combine to offer a compelling case for why this oscilloscope is highly effective for numerous applications.

Speaking of overall quality, the Rigol DS1202Z-E does not disappoint. It boasts a robust build, ensuring durability and longevity even with regular use. The interface is intuitively designed, making it easy to navigate through various measurement settings and tools. The LCD display is particularly noteworthy for its clarity and ease of reading in different lighting conditions. Furthermore, the performance metrics—be it the bandwidth, sampling rate, or memory depth—are on par with more expensive oscilloscopes, delivering excellent value for your money. The quality of signal capture is unerringly precise, thanks to its low noise floor and high waveform capture rate.

Every product has its strengths and limitations; the Rigol DS1202Z-E is no exception. Understanding these will help you decide if it fits your requirements.

• Affordable: Exceptional value for the features offered.
• High Bandwidth and Sampling Rate: 200 MHz and 1 GSa/s ensure detailed waveform analysis.
• Generous Memory Depth: 24 Mpts allowing extensive data capture.
• Clear Display: 7-inch WVGA TFT LCD is easy on the eyes and highly readable.
• Advanced Features: Includes sophisticated triggering, decoding, and waveform recording/playback functions.
• Interface Learning Curve: Beginners may find the array of functions somewhat overwhelming initially.
• Portability: While not overly bulky, it is less portable compared to some compact oscilloscopes.

In essence, the Rigol DS1202Z-E Digital Oscilloscope is an outstanding choice for anyone needing reliable and detailed signal measurements without breaking the bank. It adeptly balances high performance with cost-effectiveness, making it a must-have for your laboratory or workspace.

FNIRSI 1014D 2-in-1 Digital Oscilloscope and Signal Generator with High Voltage Probe, 2 Channels, 100MHz Bandwidth, 1GSa/s Sampling Rate, and 1GB Storage

The FNIRSI 1014D Oscilloscope is a remarkable tool designed to cater to both professionals and hobbyists. If you’re regularly working with electronics, whether for repair, design, or analysis, this oscilloscope will quickly become an essential part of your toolkit. Its combination of a powerful oscilloscope and a functional signal generator makes it versatile for various tasks. From visualizing periodic analog signals to analyzing aperiodic digital signals, its durability and broad functionality ensure it handles it all. You can be confident when diving into complex projects, as this oscilloscope’s design supports precise and efficient data collection and analysis.

One of the reasons we’re fond of the FNIRSI 1014D Oscilloscope is its user-friendly design coupled with professional-grade features. The real-time sampling rate of up to 1GSa/s and an analog bandwidth of 100MHz across two channels mean it doesn’t compromise on performance. Whether you are a novice or an experienced technician, you’ll appreciate its ease of use. The automatic adjustment feature and the large, high-definition screen make waveform observations straightforward and accurate. Plus, its built-in 1GB storage space is a great touch, offering you the convenience of storing your data for further analysis without needing additional devices.

The primary purpose of the FNIRSI 1014D Oscilloscope is to provide a reliable and efficient means of measuring, observing, and analyzing electronic signals. It stands out due to its dual functionality – being both an oscilloscope and a DDS signal generator. Here are some key features:

• High-performance sampling and bandwidth: Real-time sampling rate of 1GSa/s and 100MHz analog bandwidth on its two channels ensure accurate and detailed signal capture.
• Complete trigger function: It supports single, normal, and automatic trigger functions, adaptable to both periodic and aperiodic signals.
• Built-in Signal Generator: It incorporates a DDS function signal generator with 14 standard function signals and customizable chopping signals.
• User-friendly Measurements: The cursor measurement function allows direct reading of peak-to-peak value and frequency without the need for manual conversions.
• Effortless Visualization: Equipped with high-efficiency auto features and a 7-inch 800×480 high-definition LCD screen to present waveforms clearly.
• Specialized Viewing Options: Includes Lissajous graphic display and FFT viewing functions for more advanced signal analysis.

The build quality of the FNIRSI 1014D Oscilloscope is impressive. Each component signifies attention to detail and precision necessary for high-quality oscilloscopes. The device feels robust and reliable, capable of enduring the demands of regular professional use. The high-definition display is sharp and bright, making it easy to observe even complex waveforms. The software is intuitive, supporting both straightforward operations and advanced functionalities without a steep learning curve.

• Versatility: Dual function as an oscilloscope and signal generator.
• High Performance: 1GSa/s sampling rate and 100MHz bandwidth across two channels ensure accurate signal capture.
• User-Friendly: Easy to operate with automatic adjustments and an intuitive interface.
• High-Definition Display: The 7-inch screen provides clear and detailed visuals.
• Storage: Built-in 1GB storage for data saves time and reduces the need for external storage devices.
• Compact and Portable: Despite its extensive capabilities, it remains highly portable.
• Learning Curve: While user-friendly, beginners may require some time to fully utilize all advanced functions.
• Price Point: Even on a budget, the initial investment might seem daunting for hobbyists or beginners.
• Limited Accessories: Comes with essential probes, but additional specialized accessories might need separate purchase.

The FNIRSI 1014D Oscilloscope indeed stands out in its category. Balancing affordability with advanced features and professional quality makes it a top choice for anyone seeking reliable and efficient electronic signal analysis.

Portable Digital Oscilloscope with Enclosure & 10x BNC Probe – NooElec JYETech DSO150 (2.4″ Screen)

Are you a DIY electronics enthusiast, a budding engineer, or a hobbyist? The NooElec JYETech DSOShell Fully Assembled Portable Oscilloscope, Model DSO150 is a fantastic gadget that caters to a variety of testing and measuring needs without breaking the bank. It serves primarily for basic signal capturing and analysis—ideal for diagnosing issues in circuitry, tuning sensors, and learning the ropes of oscilloscope operation. Its 2.4″ color TFT LCD makes it easy to visualize signal patterns instantly.

When it comes to choosing a budget oscilloscope, the DSO150 shines bright. One striking feature we appreciate is its affordability combined with rich functionality. It arrives fully assembled, which takes the hassle out of setting up so you can dive right into your projects. The inclusion of a 1x/10x BNC oscilloscope probe and enclosure means you get a comprehensive package, ready for immediate use.

Another compelling reason is its portability. Coming in a compact and lightweight form, it’s easy to carry around, whether you’re moving between workbenches or taking it to a class or workshop.

The NooElec JYETech DSOShell DSO150 is a versatile tool designed for both beginners and experienced users. Its primary purpose is to provide a low-cost solution for signal acquisition and analysis. Essential features include:

• 2.4″ Color TFT LCD: Provides clear, vivid displays of waveforms.
• Fully Assembled: Arrives ready to use, saving you time and effort.
• 1x/10x BNC Oscilloscope Probe: Versatile probe suitable for different applications.
• Enclosure Included: Protects the oscilloscope, adding to its longevity.
• 9V Power Supply Requirement: Compatible with common power supplies, ensuring ease of use.
• Structural and Operational Improvements: More refined compared to its predecessor, the DSO138.

These features collectively aim to provide a reliable, cost-effective oscilloscope that doesn’t compromise on quality.

The overall quality of the DSO150 is commendable, given its price point. Its build feels sturdy and reliable, thanks to the included enclosure that safeguards the internal components. The color TFT display offers clear and bright visuals, making it straightforward to read waveforms and other data.

In terms of software and operational mechanics, the DSO150 has been fine-tuned for user-friendly interaction. If you’re new to oscilloscopes, the intuitive user interface won’t overwhelm you. For seasoned users, you’ll find that it holds up well for everyday basic diagnostics and educational purposes.

• Affordability: One of the most appealing aspects is its low cost, ideal for budget-conscious users.
• Portability: Lightweight and easy to carry, suitable for on-the-go diagnostics.
• Fully Assembled: No assembly required, ready to use right out of the box.
• 1x/10x BNC Probe Included: Gives you flexibility in measuring different signal strengths.
• Improved Design: Clear improvements over previous versions like the DSO138 in terms of structure and usability.
• Limited Bandwidth: Adequate for basic tasks but may fall short for more advanced applications.
• Display Size: While the 2.4″ TFT LCD is clear, some users may find the display size a tad small compared to larger oscilloscopes.
• Power Supply Requirements: Requires a 9V supply, which is standard but ensures you do not exceed 10V as over-voltage can damage the unit.

Choosing the NooElec JYETech DSOShell DSO150 means opting for a blend of cost-effectiveness and functionality, making it an excellent pick for both newcomers and DIY enthusiasts.

Comparison of Digital Oscilloscopes

When it comes to choosing a digital oscilloscope, it’s crucial to compare the specifications and features to find the best fit for your needs. We’ll break down the key features of each of the following models:

1. Upgrade Mini Handheld Digital Oscilloscope (154pro)
2. Rigol MSO5104 100 MHz Mixed Signal Oscilloscope
3. Rigol DS1202Z-E Digital Oscilloscope
4. FNIRSI 1014D Oscilloscope
5. NooElec JYETech DSOShell Portable Oscilloscope

Specifications Overview

To streamline the comparison process, let’s visualize the specifications and features in a table.

Key Highlight

• 154pro Mini Handheld Oscilloscope: This compact device offers a surprising amount of features in a small, portable package. It’s perfect for on-the-go troubleshooting of electronics, with the added benefit of a built-in signal generator and high voltage protection, making it ideal for DIYers and hobbyists.
• Rigol MSO5104: Positioned at the higher end, this oscilloscope provides extensive professional features, including up to 4 analog channels and 16 digital channels, a high sampling rate, and deep memory. It’s suitable for more demanding applications and professional environments.
• Rigol DS1202Z-E: This oscilloscope is a solid mid-range option, offering a 200MHz bandwidth, 2 analog channels, and a notable memory depth. It’s a good balance between performance and price, catering well to both professionals and serious hobbyists.
• FNIRSI 1014D: This dual-use device excels as both a digital oscilloscope and a DDS signal generator. It offers numerous trigger functions and a high-definition display, catering to those who need more advanced signal analysis features.
• NooElec JYETech DSOShell: A budget-friendly and portable option, this oscilloscope is best for basic tasks and simple troubleshooting, making it ideal for beginners or for situations where portability and cost are significant considerations.

Conclusion of Product Review

After diving into the specifics of each of these five oscilloscopes, you’ve received a comprehensive look at their features, benefits, and drawbacks. Let’s summarize and give you a solid recommendation based on your needs.

Product Overviews and Drawbacks

1. Upgrade Mini Handheld Digital Oscilloscope
   • Pros: Compact, portable, built-in function generator, support for PWM, and persistence mode. It also features 14 types of measurements and a convenient LCD display.
   • Cons: Limited bandwidth (18MHz) and sampling rate (40MSa/s), which might not suffice for more demanding tasks.
2. Rigol MSO5104 Mixed Signal Oscilloscope
   • Pros: High bandwidth (100MHz), four analog channels, and UltraVision II technology. It’s a robust option for extensive and high-speed data analysis.
   • Cons: Higher price point, which may not be ideal for beginners or those on a budget.
3. Rigol DS1202Z-E Digital Oscilloscope
   • Pros: Generous bandwidth (200MHz), two channels, high sampling rate (1GSa/s), and commendable memory depth (24Mpts).
   • Cons: May be over-featured for simple tasks, making it a potentially excessive investment for basic users.
4. FNIRSI 1014D Oscilloscope
   • Pros: 2-in-1 digital oscilloscope and signal generator, large built-in storage, high voltage probe, and high bandwidth (100MHz).
   • Cons: The user interface may not be as sophisticated or smooth as higher-end models like Rigol.
5. NooElec JYETech DSOShell Portable Oscilloscope
   • Pros: Budget-friendly, portable, easy to use, and comes fully assembled with a usable BNC probe.
   • Cons: Limited functionality and lower bandwidth, which may not meet the needs of more advanced users.

Recommendations

For Beginners and Hobbyists

If you’re just starting out or need an oscilloscope for basic projects, consider the NooElec JYETech DSOShell. It’s cost-effective and easy to use, making it a perfect introduction to using oscilloscopes.

For Intermediate Users

For those who want to take their projects a step further without breaking the bank, the Upgrade Mini Handheld Digital Oscilloscope is a solid choice. It’s versatile and portable, suitable for most intermediate-level tasks.

For Advanced Users and Professionals

If you need a high-performance oscilloscope for professional or research purposes, the Rigol MSO5104 or the Rigol DS1202Z-E will have you covered. While the MSO5104 offers extensive multifunctionality, the DS1202Z-E provides exceptional bandwidth and memory.

For Additional Functionality

If you require both signal generation and measurement capabilities, the FNIRSI 1014D presents an excellent balance. It’s an ideal choice for a dual-purpose tool without compromising on essential features.

In summary, your choice depends significantly on your specific needs, budget, and the complexity of the tasks at hand. Whichever model you choose, each of these oscilloscopes brings its own unique set of attributes that can help you effectively in your electronic projects. Happy oscilloscoping!
